Crankshaft and camshaft measuring instruments

​
​

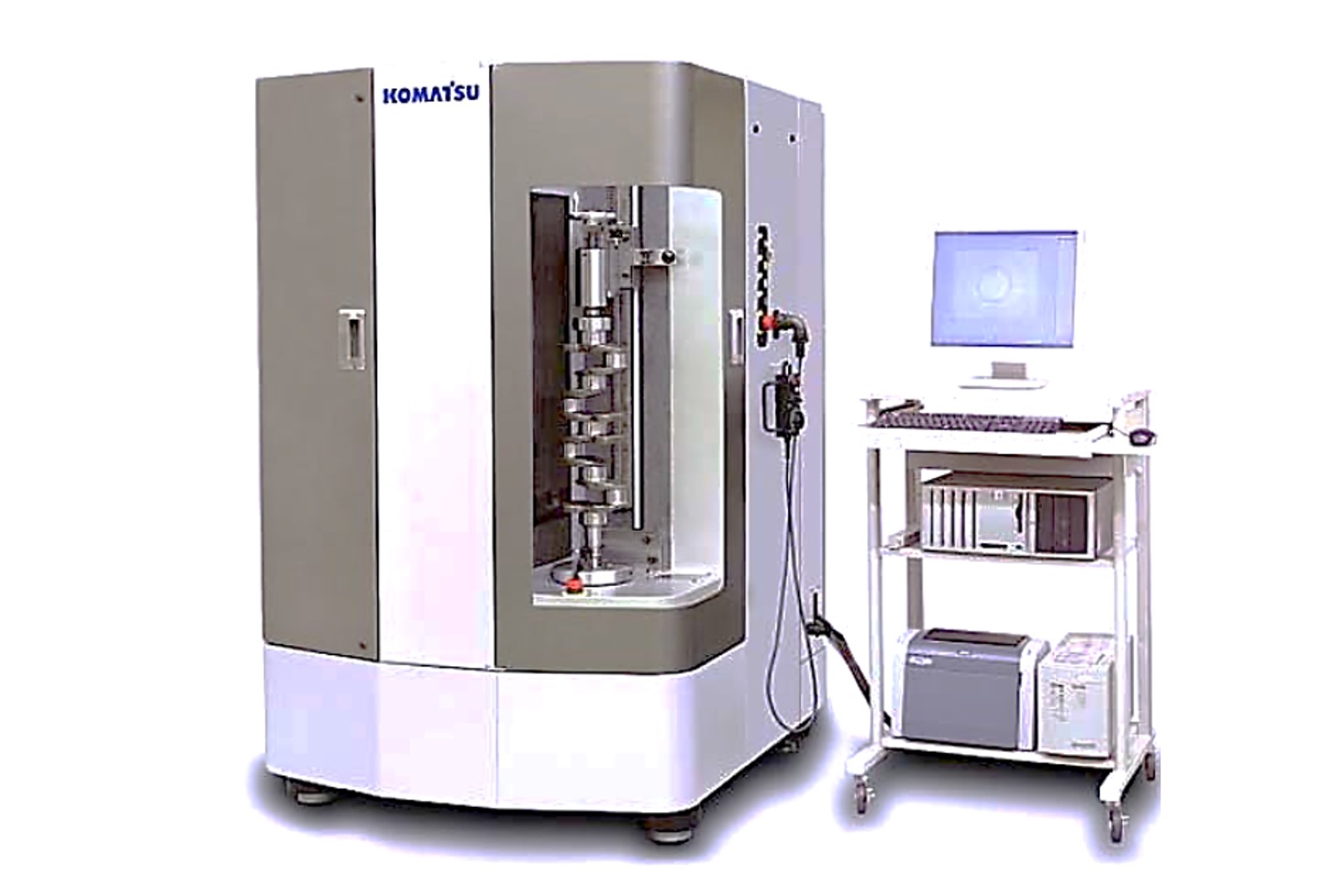

The DD series balance measuring machines measure crankshafts in their material state and calculate the dynamic balance center, leading to the optimal machining position of the center hole, which has a significant impact on the dynamic balance. This is a completely different concept from conventional balance measuring machines and provides innovation to the crankshaft machining line.

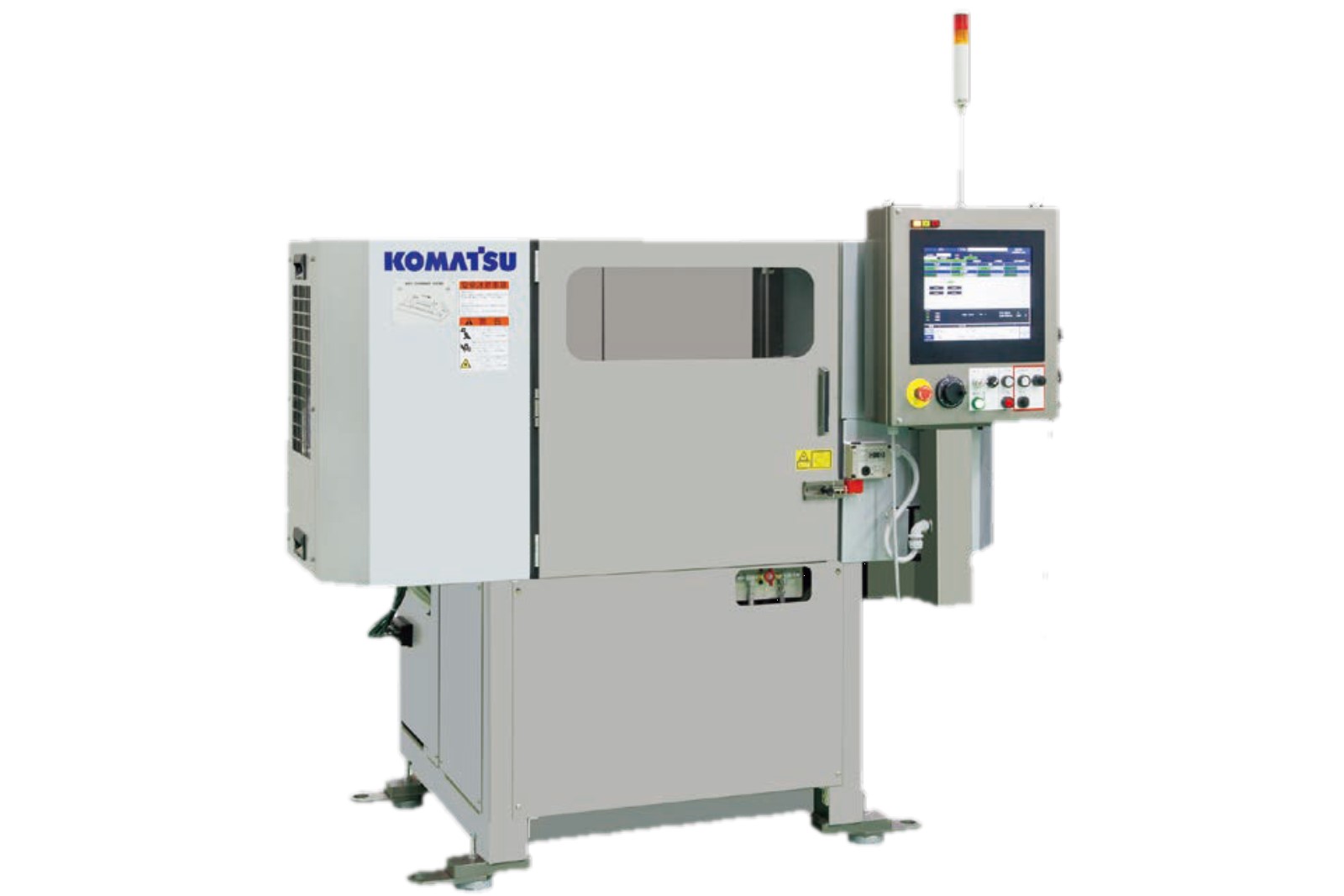

The GDBV-2 series of accuracy measuring machines can measure the accuracy of both crankshafts and camshafts with a single unit. It is possible to handle multiple workpiece types with a simple program change.

Komatsu NTC technology

High productivity requires automation and flexibility for easy, high-precision measurement, and is infused with the flexibility we have developed in our powertrain production lines.

Automotive industry machining line

Our extensive experience with crankshaft machining lines enables us to propose the optimum chucking method for stable measurement.

High-speed processing for the line

High-precision, high-speed laser measurement and calculation data output processing for the first time in response to the cycle time of crank lines.

Measurement, recognition, and processing

Yield rate improvement processing technology by counterweight laser measurement method born from Komatsu NTC's innovation.

Product lineup

Crankshafts
balance measuring machines



Crankshafts and camshafts
precision measuring machines

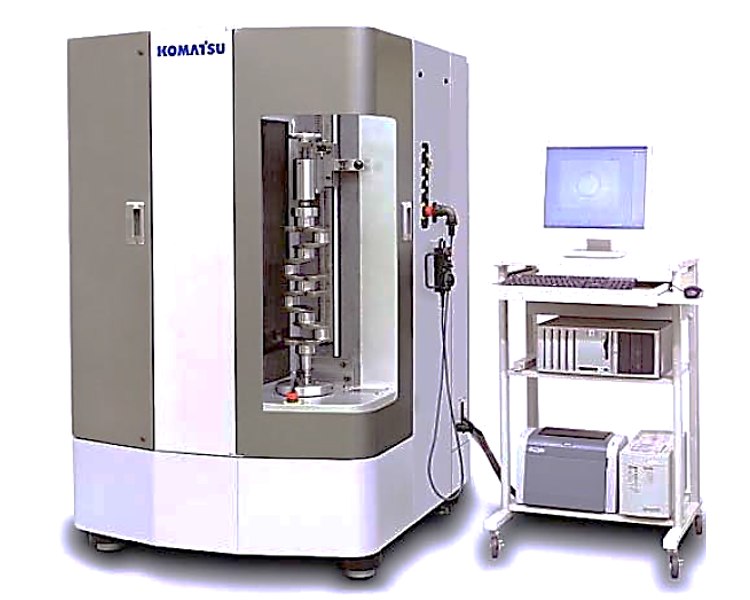

■ Crankshafts balance measuring machines

Product appearance Product name Max. workpiece length
mm		 Max. work swing
mm		 Max. workpiece mass
kg		 Measuring stroke (radial direction)
mm		 Measuring stroke (longitudinal direction)
mm		 Machine size (W x D x H)
mm		 Machine weight
kg
DD200 630 200 30 1,800 x 1,150 x 1,600 1,200
DD300 1,300 300 200 3,600 x 2,000 x 1,800 3,300

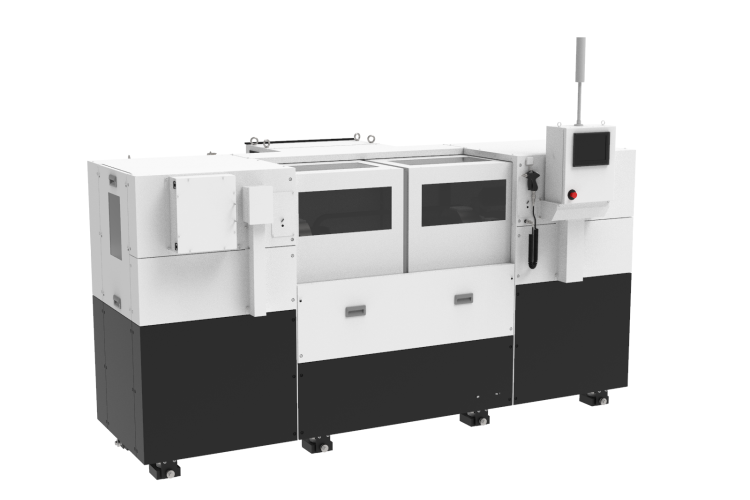

■ Crankshafts and camshafts precision measuring machines

Product appearance Product name Max. workpiece length
mm		 Max. work swing
mm		 Max. workpiece mass
kg		 Measuring stroke (radial direction)
mm		 Measuring stroke (longitudinal direction)
mm		 Machine size (W x D x H)
mm		 Machine weight
kg
GDB080V-2 750 290 100 200 800 1,160 x 1,000 x 1,810 1,900
GDB120V-2 1,250 290 200 200 1,300 1,160 x 1,000 x 2,070 2,000
GDB200V-2 2,000 390 400 250 2,100 1,300 x 1,500 x 3,270 7,300
