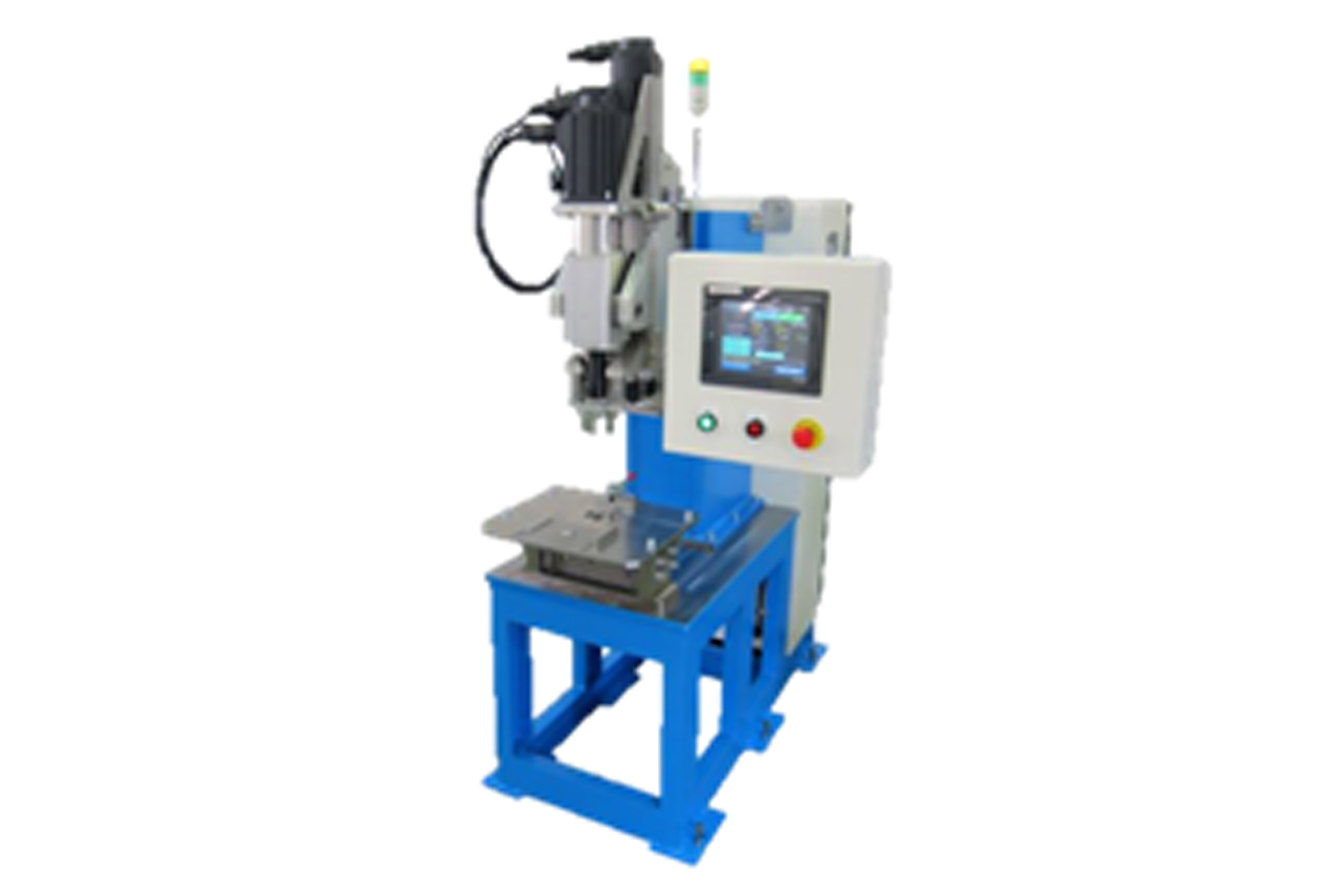

Friction Stir Welding Machine　SWING-FSW

By swinging the FSW tool, enable to create a large welding area

By swinging the FSW tool to create a large welding area in linear joints, stronger welding is possible.

Joiniting position

The material is welded by inserting a cylindrical tool which is called rotary tool, into the material to the specified depth. And the tool traverses along with desired welding path.

Principle

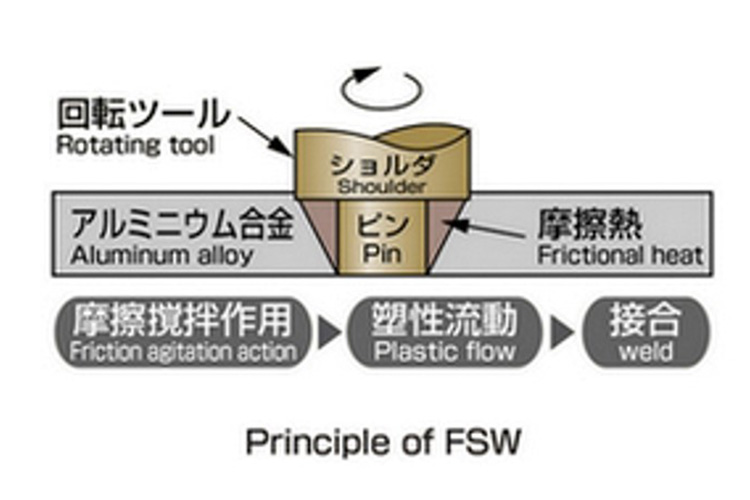

The material near the rotating tool is heated by the frictional and processing heat generated between the rotating tool and the material, causing it to soften. The softened material is then stirred by the rotation of the tool and solid-state welding occurs behind the tool.

Manufacturing of copper alloy backing plates

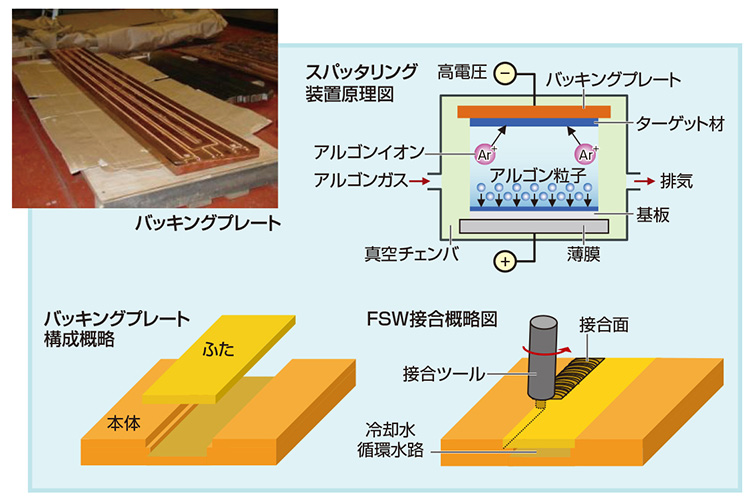

By leveraging the characteristic of low temperature rise during welding, not only can the reduction of thermal effects—which has been a challenge—be achieved, but manufacturing in a general environment is also possible, as there is no need for a vacuum chamber to generate a high vacuum.

Structural refinement of aluminum castings

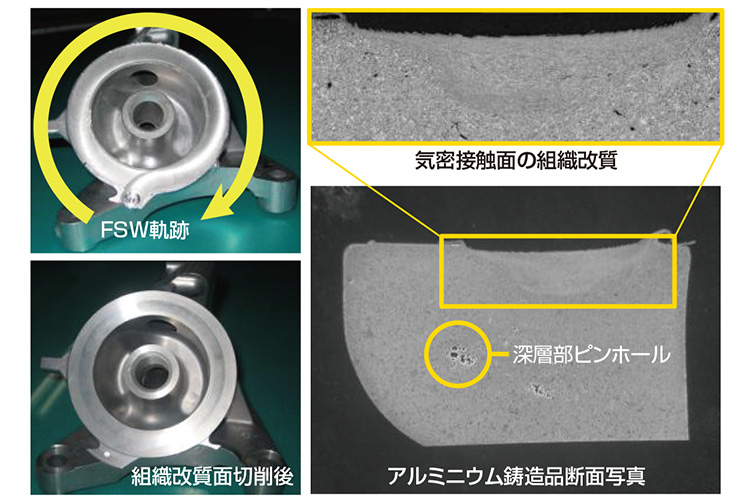

By friction stirring the area where microstructural refinement is desired, not only can a cross-sectional structure free of pinholes be formed, but the refinement of the microstructure also enables transformation into a more homogeneous material.
　　　
Machine specification Unit Standard specification
Maximum spindle rpm min-1 3,000
Maximum part size mm W500×D300
Maximum vertical thrust kN 25
Horizontal machining force kN

Case examples of FSW
