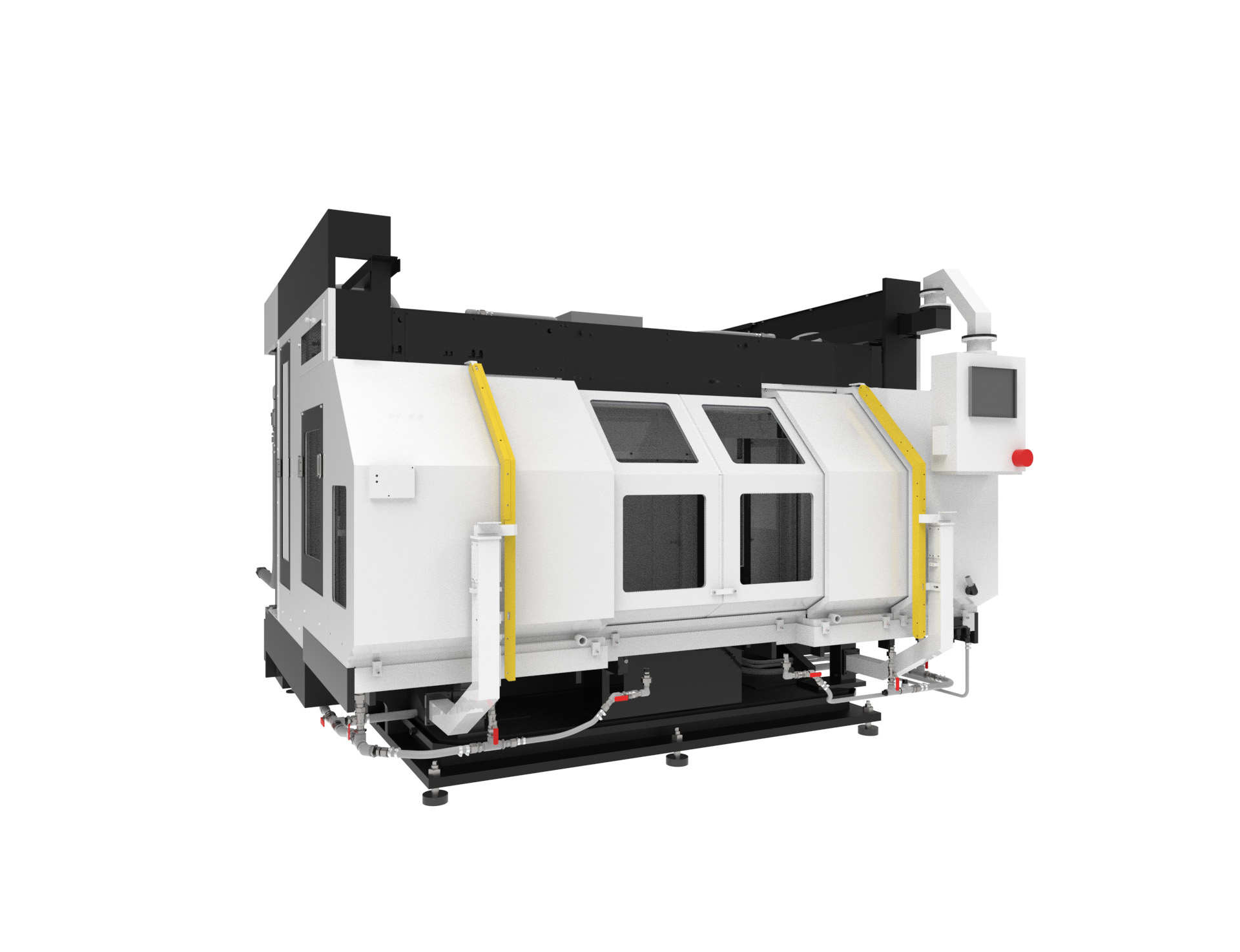

Horizontal Machining Center for Long Aluminum works N3Q Special Single-Spindle Machining Center

> Product List



A horizontal machining center dedicated to long aluminum works, such as car bumpers and roof rails

Dedicated to machining of long aluminum works


  • A horizontal machining center specially designed for long aluminum works. Designed for maximum flexibility and process consolidation, featuring a low machine height, extended X-axis stroke, and an embedded tilt-and-index table in the sub-head.


Main features and specifications

Tilt-and-Index Table Dedicated for Long Workpieces

  • The 360° tilt-and-index table enables machining from top, bottom, and angled surfaces, supporting a wide range of workpieces for flexible production.

Horizontal design enables efficient direct chip evacuation.

  • The spindle’s horizontal posture, tilt table, and direct chip evacuation design enable good chip management, reduce manual handling, and support long time automated operation.

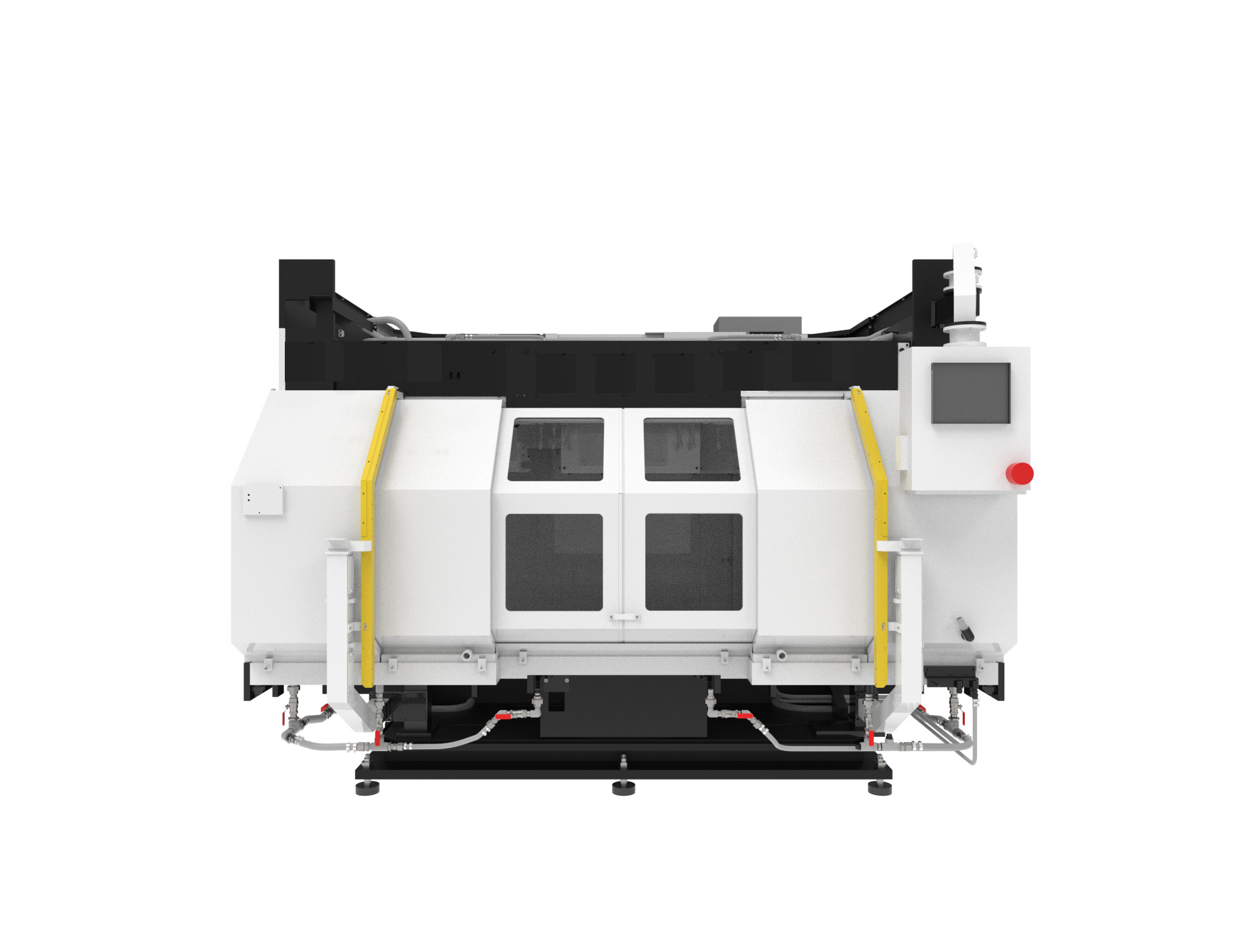

Front Door and Ceiling Integrated Type, Designed for Machining Line Applications

  • Wide-open front door and integrated ceiling design for flexible transfer applications - supports both robot and gantry systems.


Offering Fixture Design, Manufacturing, and Machining Line Solutions

  • We offer fixture design and manufacturing tailored to the workpiece, along with machining quality checks and line transfer system proposals. Comprehensive solutions are also available, including deburring and washing processes.
　　 　　　
Machine specification items Unit Standard specification value
Stroke X/Y/Z mm 1,650×410×400
Spindle taper type Type HSK-A40
Number of spindle unit Unit 1
Max. spindle speed min-1 12,000
Number of tools stored pcs 16
Max. tool Diameter / Max. tool length mm Φ50/250
Control unit Maker FANUC
