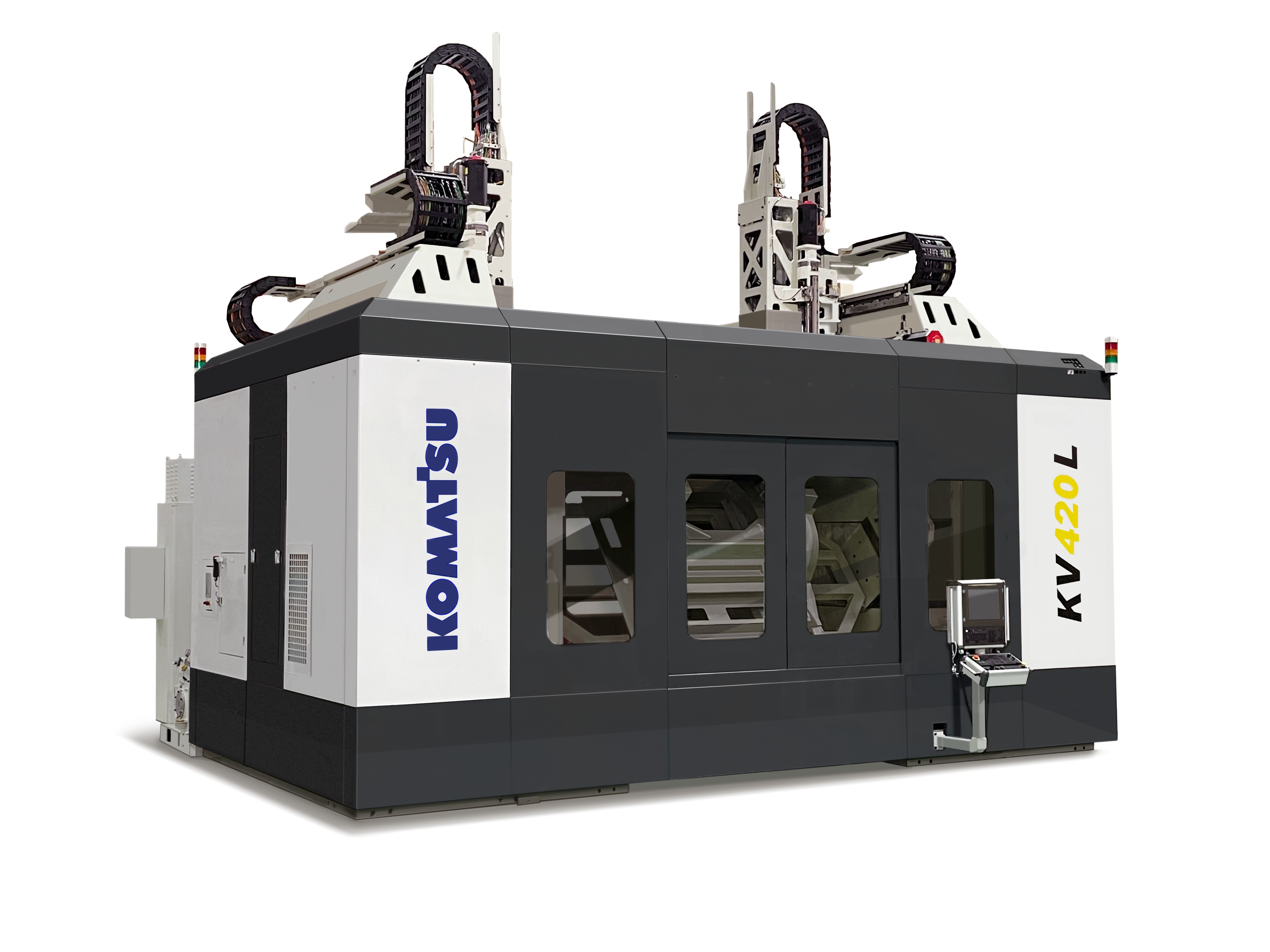

Large-scale vertical machining center KV420L

> Product List



Automobile platform developed by new modulization Large-scale machining center for　"GIGA casting work"

High area productivity by six-sided machining with two heads and one chucking



  • Our advanced technology enables high-efficiency machining of large aluminum components—such as GIGA castings—by performing six-sided machining with a single chucking operation. Combined with high-speed feed and a compact footprint, it significantly enhances area productivity.

Main features and specifications

Equipped with Twin Universal Heads

  • High flexibility is achieved through the use of independently controlled right and left spindles, combined with a universal head. This configuration enables efficient one-chucking machining from both sides and supports complex multi-angle hole processing.


Movable 360-degree tilting rotary table

  • The lattice-structured rotary tilt table offers 360-degree rotation. In addition, Y-axis movement of the tilting unit enables easy rear-side machining with long tools.


High rigidity ＆ Fast feed

  • X, Y and Z axis are designed for high rigidity and high-speed operation, utilizing a linear guide and ball screw drive. This machine offers optional scale feedback and ensures high-rigidity machining across the entire machining area.

High area productivity

  • By adopting a tandem structure of the Y-axis and tilting axis, this machine achieves both high-speed performance and a compact design. Its space-saving configuration facilitates easy installation, while efficient machining enhances high area productivity.

Machine specification items Unit Standard specification value
Stroke X1,2/Y1,2/Z1,2 mm 1,710 / 1,210 / 1,000
Spindle taper type Type HSK-A63
Number of spindle unit pcs 2（Universal head specification）
Spindle speed min-1 12,000（OP：20,000）
Number of tools stored pcs 40/unit ×2units ＝80
Control unit Type FANUC i series
Machine Footprint mm W6,800 / D5,500 / H5,800
