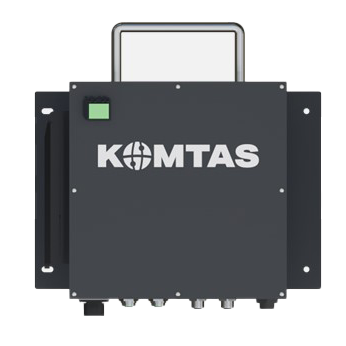

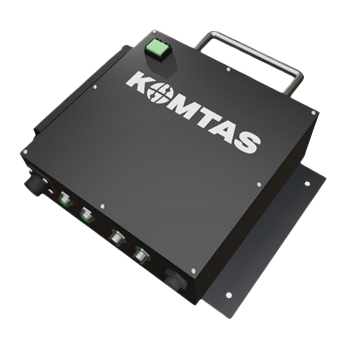

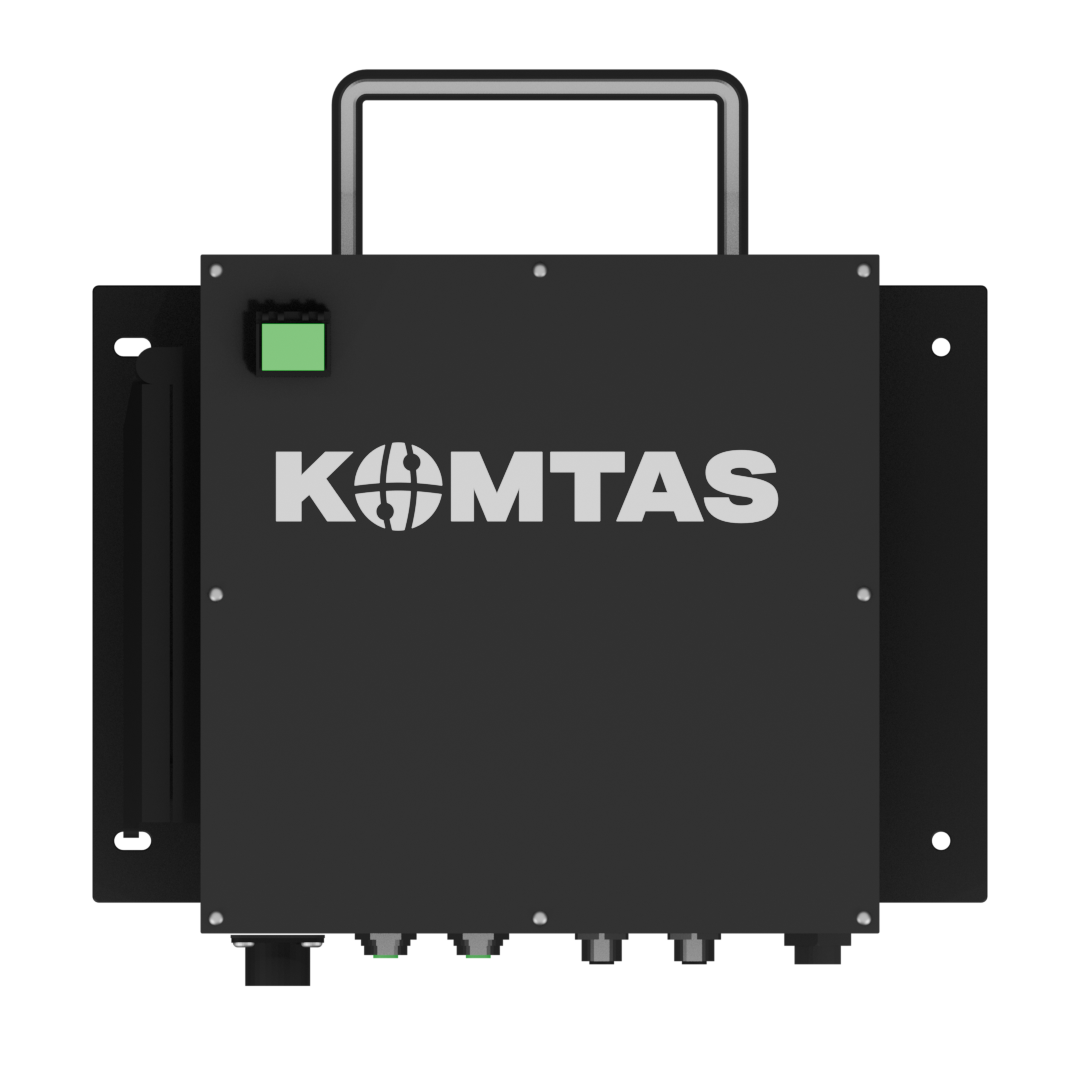

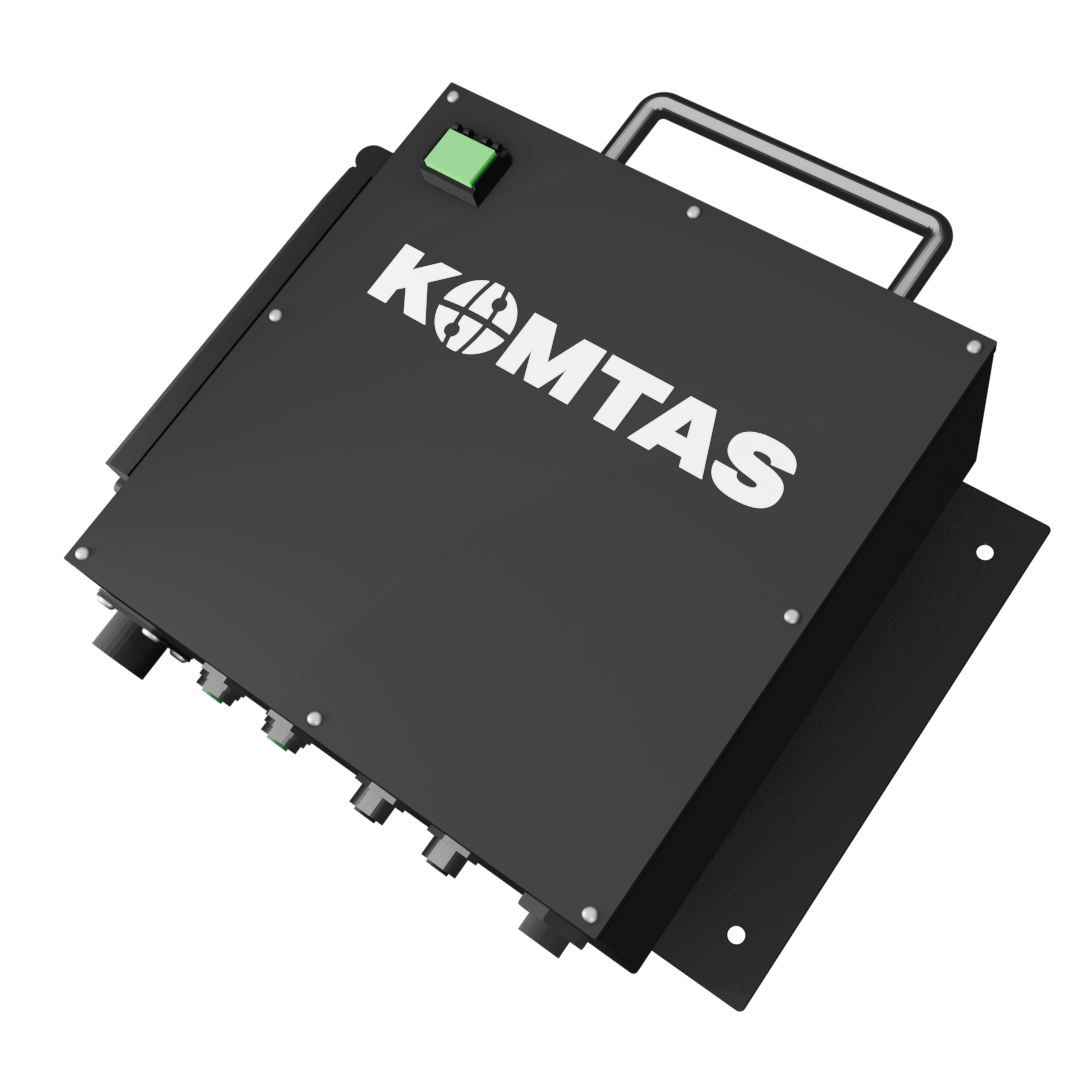

“Komtas" tool monitoring system

> Product List



Monitoring the machining status without overlooking a subtle change.

Only a single cable enables you see the both statuses of  machining and production.


  • Komtas is a monitoring system which can collect various kinds of  process data on a cycle of 1 millisecond, analyses, render those data visualized and raise an alarm when necessary.
    The applications for analysis can be easily tailored to suit your circumstances, helping machining conditions, cost and productivity improved in your facilities.



Characteristic features

Eight kinds of applications let you grasp the machining status

  • With every application by purpose, Komtas can make program settings and feature collections automated. There are 8 kinds of applications, ①Wear Diagnosis ②Chipping Diagnosis ③Tool Breakage Diagnosis ④Hole Curving Diagnosis  ⑤Hole Diameter Diagnosis ⑥Hole Depth Diagnosis  ⑦Utilization of Past Data ⑧Abnormality Detection

High-speed data collection by 1msec and Data Cleansing

  • High speed data collections enable you to monitor a subtle machining change up to tips of multi-blade tools. Then, those cleansed data of the machining processes or the whole lines are mechanically converted to each application language which is understandable to operators, helping them decide the next action.


Make the machining conditions visible to operators, sending those data into NC

  • Once an operation process is completed, the process calculation results are shown at once. By setting the abnormal thresholds as well as notification address, Komtas gives abnormality warnings to NC, which help you stop consecutive failures in your production.


Detect abnormal data

  • Komtas can be particularly helpful for someone who doesn't know what to do, even though they want something in preventive maintenance or in detection of process abnormalities.

Machine specification items unit Standard specification value
Application Type ①Wear Diagnosis ②Chipping Diagnosis ③Tool Breakage Diagnosis ④Hole Curving Diagnosis ⑤Hole Diameter Diagnosis ⑥Hole Depth Diagnosis ⑦Past Data Utilization ⑧Abnormality Detection
Connectable Machines Manufacturer Made by Komatsu NTC (Including Nippei Toyama)
Data connection object NC model FANUC i Series
Interface LAN M12 x Type 8 pin = 2 port (10/100/1000)
Interface USB USB3.0 Type A = 2 ports / USB2.0 Type C = 1 port
Interface HDMI 1 port
Number of external data inputs ch Analog voltage 8ch
Power Rated voltage AC100～240V

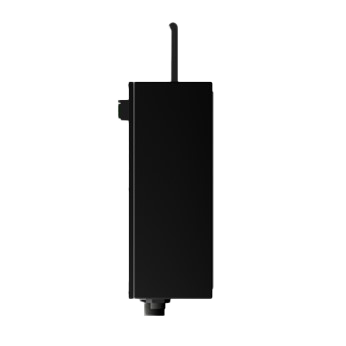

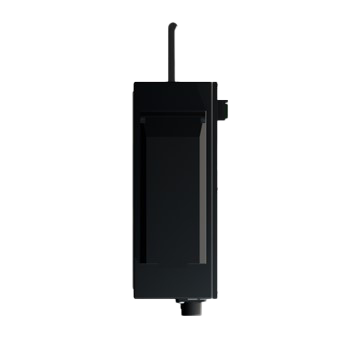

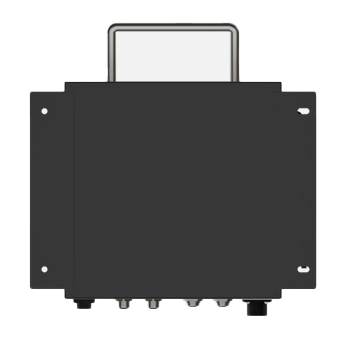

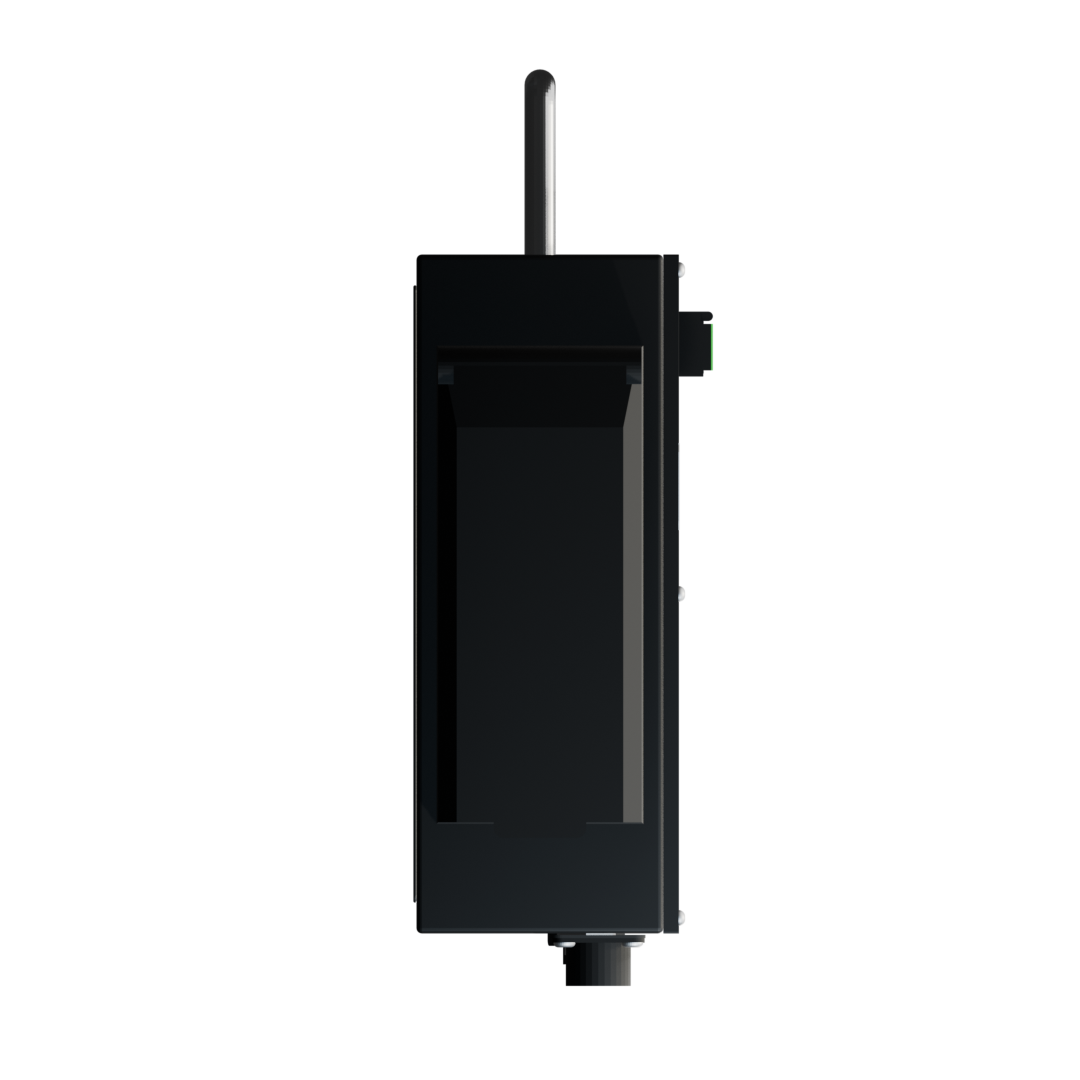

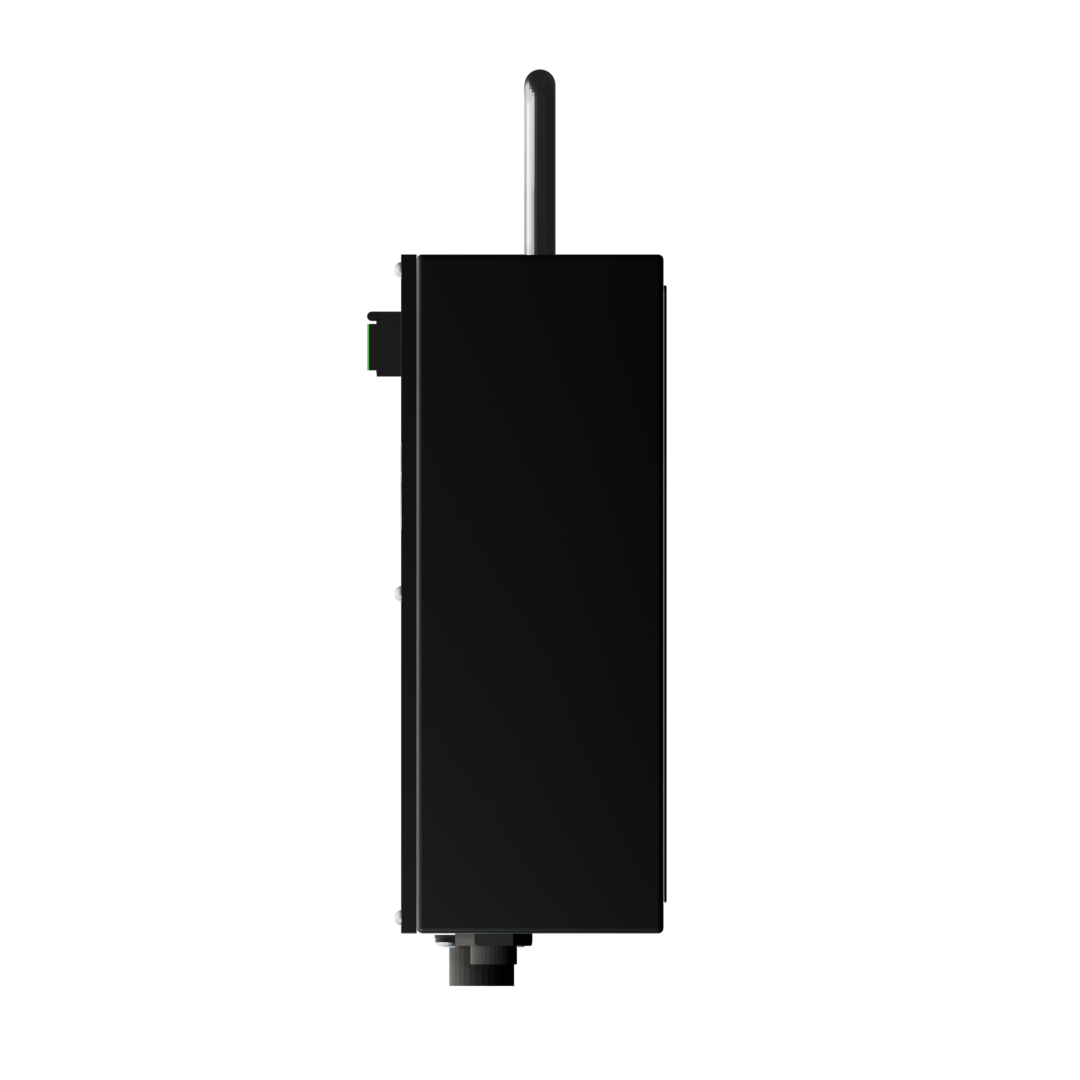

Body size mm Width 290 x Height 280 x Height 85 (standing includes handle)
